[Topic Unique] La RNT en Australie

[Franck Morin]

Bonjour,
en déplacement à Melbourne cette semaine, j'en ai profité pour regarder ce qu'on pouvait recevoir là bas.
j'avais amené mon matériel (2 clés USB et mon antenne double brins téléscopiques) pour utiliser DABplayer et QIRX, j'étais dans l'hotel Le Méridien au centre ville, 20 Bourke street.

on a donc 3 multiplex diffusés sur Melbourne:
le 9A, 9B et 9C.

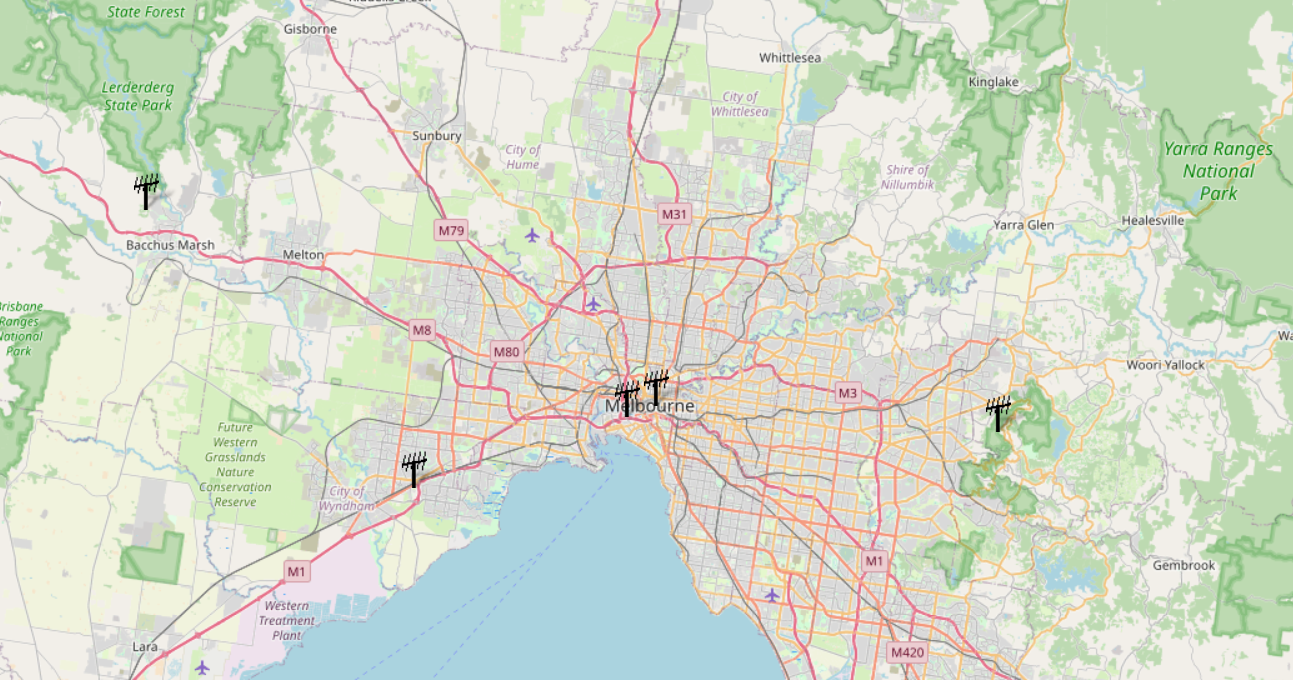

selon fmlist, on aurait 5 émetteurs pour chacun des multiplex, dont un avec une puissance importante de 50 kW, les autres de moins d'1 Watt.

A noter que les Australiens ont un site de divulgation DAB+ assez complet, un peu comme en Suisse ou en Allemagne:
https://digitalradioplus.com.au/

on peut même écouter en IP les radios DAB+ du pays.

https://digitalradioplus.com.au/DigitalRadioPlus/media/DRP_Media/Slider%20Images/CRA_DAB-_Header_V2_1840x500.png

[Franck Morin]

pour le multiplex 9A F003 DAB Melbourne 1, on capte les radios suivantes.
les services sont extraits via DABplayer et listés par ordre de compression et de débit :

Protection level // Bitrate // Service ID // Service Name // Short Label // Service Language // PTY // Sub channel ID // CU
EEP 2-A // 48 // 1109 // easy music 3MP // 3MP // none // Easy Listening Music // B // 48
EEP 3-A // 24 // 1008 // Radio Maria Ital // MariaIt // Italian // Religion // 1C // 18
EEP 3-A // 24 // 111E // Radio Maria // Maria // English // Religion // 1A // 18
EEP 3-A // 32 // 10C1 // RSN Xtra 1 // RSNXtra1 // English // Sport // 2 // 24
EEP 3-A // 32 // 10C2 // TAB Lounge // TAB // English // Sport // 3 // 24
EEP 3-A // 32 // 10C3 // RSN Xtra 2 // RSNXtra2 // English // Sport // 4 // 24
EEP 3-A // 32 // 110C // DISRUPT // DISRUPT // none // Sport // E // 24
EEP 3-A // 32 // 111C // Coles Radio // Coles // none // none // 18 // 24
EEP 3-A // 32 // 1132 // iHeartAustralia // iHrtAus // none // No programme type // 28 // 24
EEP 3-A // 32 // 1133 // iHeartDance // iHrtDnce // none // No programme type // 29 // 24
EEP 3-A // 32 // 1137 // MMM 80s // MMM 80s // none // none // 2B // 24
EEP 3-A // 32 // 1138 // MMM CLASSIC ROCK // MMMCLASS // none // none // 2C // 24
EEP 3-A // 32 // 1139 // MMM COUNTRY // MMMCNTRY // none // none // 2D // 24
EEP 3-A // 32 // 113A // Chill Pop Hits // ChillPop // none // none // 2F // 24
EEP 3-A // 32 // 113B // MMM 2000s // MMM 00s // none // none // 2E // 24
EEP 3-A // 40 // 1106 // SEN 1116 // SEN 1116 // English // Sport // 8 // 30
EEP 3-A // 40 // 111D // Smooth Relax // Relax // none // none // 19 // 30
EEP 3-A // 40 // 111F // Smooth Vintage // Vintage // none // none // 1B // 30
EEP 3-A // 48 // 111A // Nova 100 // Nova 100 // none // none // 16 // 36
EEP 3-A // 48 // 111B // Smooth 91.5 // Smooth // none // none // 17 // 36
EEP 3-A // 64 // 10C0 // RSN Racing&Sport // RSN // English // Sport // 1 // 48
EEP 3-A // 64 // 114C // 3RRR Digital // 3RRR D // none // Social Affairs // 32 // 48
EEP 3-B // 32 // 1107 // SEN FAN // SEN FAN // none // Sport // 9 // 18
EEP 3-B // 32 // 1108 // SEN Track // SENTrack // none // Sport // A // 18
EEP 3-B // 32 // 114D // LightMIX // LightMIX // none // Religion // 33 // 18
EEP 3-B // 64 // 114E // 3MBS Melbourne // 3MBS // none // Serious Classical // 34 // 36
EEP 4-A // 16 // 110D // NICHE RADIO 2 // NICHE 2 // none // none // F // 8
EEP 4-A // 24 // 110B // NICHE RADIO // NICHE // none // Culture // D // 12
EEP 4-A // 32 // 1150 // VA IRIS Melb // VA IRIS // none // Information // 36 // 16
EEP 4-A // 40 // 1151 // Light89.9 // Light899 // none // Religion // 37 // 20
EEP 4-A // 40 // 1152 // Light Christmas // LightChr // none // Religion // 38 // 20
EEP 4-A // 64 // 110A // Vision Christian // Vision C // English // Other Music // C // 32
EEP 4-A // 64 // 114F // 3ZZZ Ethnic // 3ZZZ // none // Culture // 35 // 32

Code: Tout sélectionner

Ensemble 0xF003, Label: 'DAB Melbourne 1', ShortLabel: 'DAB Mel', LTO: +660 min, ECC: 0xF0, AlarmFlag: 1, NumServices: 33
    Audio-Service 0x1008, Label: 'Radio Maria Ital', ShortLabel: 'MariaIt', PTY: Religion (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 28, StartCU: 174, NumCU: 18, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 24 kbit/s, NumUserApps: 0
    Audio-Service 0x10C0, Label: 'RSN Racing&Sport', ShortLabel: 'RSN', PTY: Sport (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 1, StartCU: 696, NumCU: 48, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 64 kbit/s, NumUserApps: 0
    Audio-Service 0x10C1, Label: 'RSN Xtra 1', ShortLabel: 'RSNXtra1', PTY: Sport (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 2, StartCU: 744, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x10C2, Label: 'TAB Lounge', ShortLabel: 'TAB', PTY: Sport (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 3, StartCU: 768, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x10C3, Label: 'RSN Xtra 2', ShortLabel: 'RSNXtra2', PTY: Sport (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 4, StartCU: 792, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x1106, Label: 'SEN 1116', ShortLabel: 'SEN 1116', PTY: Sport (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 8, StartCU: 312, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 0
    Audio-Service 0x1107, Label: 'SEN FAN', ShortLabel: 'SEN FAN', PTY: Sport (static), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 9, StartCU: 342, NumCU: 18, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x1108, Label: 'SEN Track', ShortLabel: 'SENTrack', PTY: Sport (static), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 10, StartCU: 360, NumCU: 18, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x1109, Label: 'easy music 3MP', ShortLabel: '3MP', PTY: Easy Listening Music (static), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 11, StartCU: 378, NumCU: 48, ErrorProt: EEP 2-A (FEC: 3/8), Datarate: 48 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x110A, Label: 'Vision Christian', ShortLabel: 'Vision C', PTY: Other Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 12, StartCU: 426, NumCU: 32, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 64 kbit/s, NumUserApps: 0
    Audio-Service 0x110B, Label: 'NICHE RADIO', ShortLabel: 'NICHE', PTY: Culture (static), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 13, StartCU: 458, NumCU: 12, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 24 kbit/s, NumUserApps: 0
    Audio-Service 0x110C, Label: 'DISRUPT', ShortLabel: 'DISRUPT', PTY: Sport (static), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 14, StartCU: 470, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x110D, Label: 'NICHE RADIO 2', ShortLabel: 'NICHE 2', PTY: -, AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 15, StartCU: 494, NumCU: 8, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 16 kbit/s, NumUserApps: 0
    Audio-Service 0x111A, Label: 'Nova 100', ShortLabel: 'Nova 100', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 22, StartCU: 0, NumCU: 36, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 48 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x111B, Label: 'Smooth 91.5', ShortLabel: 'Smooth', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 23, StartCU: 36, NumCU: 36, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 48 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x111C, Label: 'Coles Radio', ShortLabel: 'Coles', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 24, StartCU: 72, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x111D, Label: 'Smooth Relax', ShortLabel: 'Relax', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 25, StartCU: 96, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x111E, Label: 'Radio Maria', ShortLabel: 'Maria', PTY: Religion (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 26, StartCU: 126, NumCU: 18, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 24 kbit/s, NumUserApps: 0
    Audio-Service 0x111F, Label: 'Smooth Vintage', ShortLabel: 'Vintage', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 27, StartCU: 144, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x1132, Label: 'iHeartAustralia', ShortLabel: 'iHrtAus', PTY: No programme type (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 40, StartCU: 816, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x1133, Label: 'iHeartDance', ShortLabel: 'iHrtDnce', PTY: No programme type (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 41, StartCU: 840, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x1137, Label: 'MMM 80s', ShortLabel: 'MMM 80s', PTY: -, AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 43, StartCU: 192, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x1138, Label: 'MMM CLASSIC ROCK', ShortLabel: 'MMMCLASS', PTY: -, AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 44, StartCU: 216, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x1139, Label: 'MMM COUNTRY', ShortLabel: 'MMMCNTRY', PTY: -, AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 45, StartCU: 240, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x113A, Label: 'Chill Pop Hits', ShortLabel: 'ChillPop', PTY: -, AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 47, StartCU: 288, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x113B, Label: 'MMM 2000s', ShortLabel: 'MMM 00s', PTY: -, AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 46, StartCU: 264, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x114C, Label: '3RRR Digital', ShortLabel: '3RRR D', PTY: Social Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 50, StartCU: 504, NumCU: 48, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x114D, Label: 'LightMIX', ShortLabel: 'LightMIX', PTY: Religion (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 51, StartCU: 552, NumCU: 18, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x114E, Label: '3MBS Melbourne', ShortLabel: '3MBS', PTY: Serious Classical (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 52, StartCU: 570, NumCU: 36, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x114F, Label: '3ZZZ Ethnic', ShortLabel: '3ZZZ', PTY: Culture (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 53, StartCU: 606, NumCU: 32, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x1150, Label: 'VA IRIS Melb', ShortLabel: 'VA IRIS', PTY: Information (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 54, StartCU: 638, NumCU: 16, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x1151, Label: 'Light89.9', ShortLabel: 'Light899', PTY: Religion (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 55, StartCU: 654, NumCU: 20, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 40 kbit/s, NumUserApps: 0
    Audio-Service 0x1152, Label: 'Light Christmas', ShortLabel: 'LightChr', PTY: Religion (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 56, StartCU: 674, NumCU: 20, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 40 kbit/s, NumUserApps: 0

les radios et les émetteurs issues de fmlist/DABlist:
https://www.fmlist.org/sendertabelle/dab-ww_more.php?inputLand=AUS&inputEn=F003

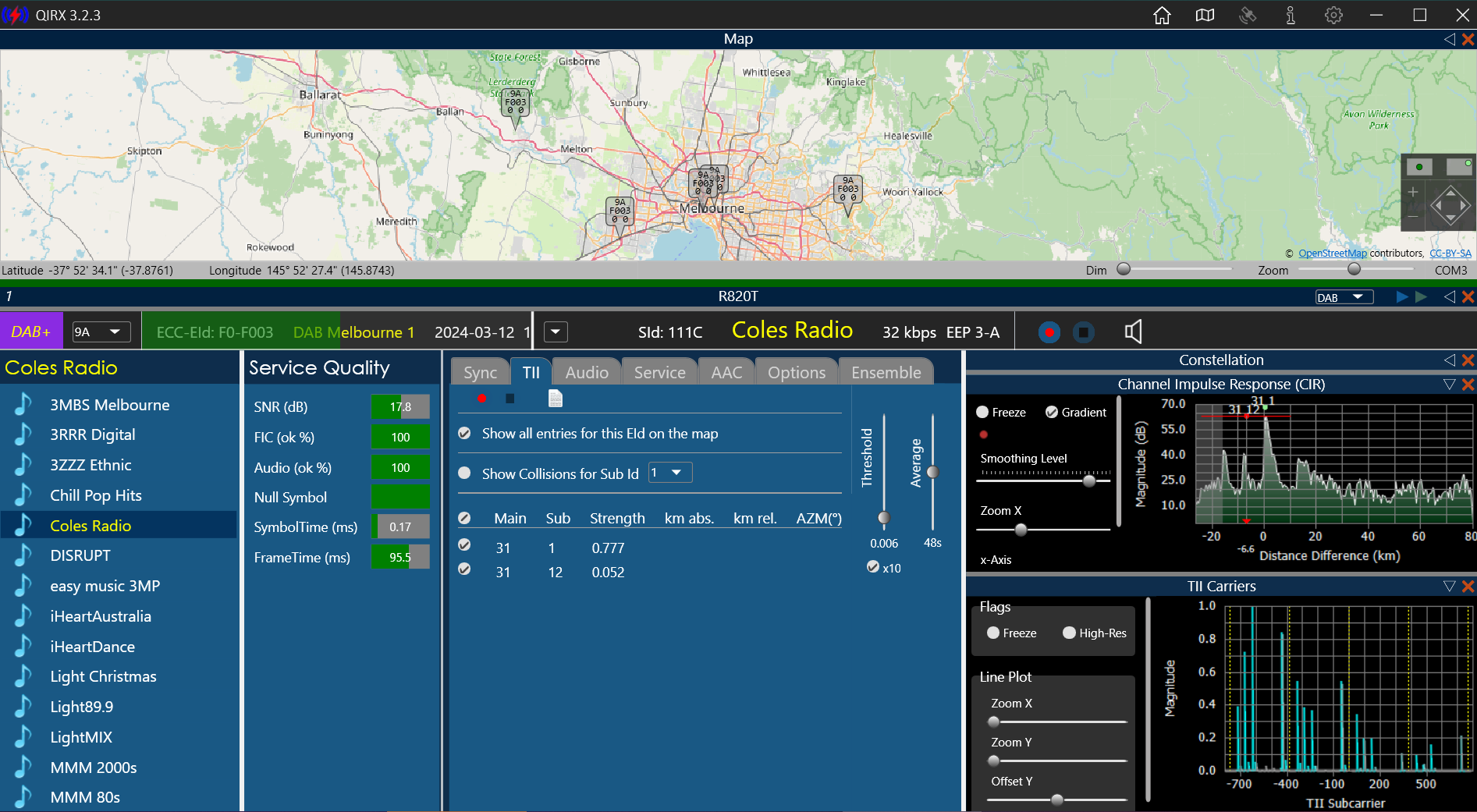

les TII que je recevais, je n'ai pas réussi à déterminer quel émetteur avait le TII 31/1 et lequel le 31/12

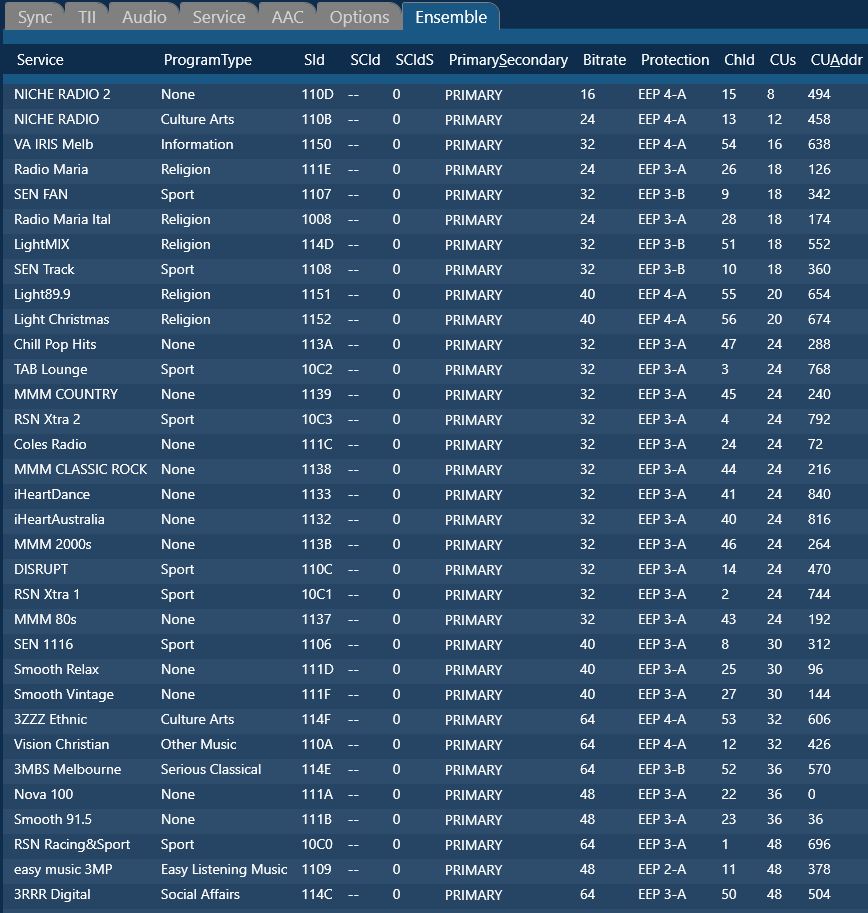

pour information la répartition des CU par service:


j'ai enregistré un fichier fic et je l'ai fait analyser par le service en ligne, a priori il n'y a rien de particuler en tant que suivi de service (pas de FIG 0/6, 0/21 ou 0/24).
https://www.telder.com/fic/fic.php?ficfile=9A_DAB%20Melbourne%201_2024-03-12_143654.fic

les débits sont relativement faibles pour chacun des services, mais c'est compensé par l'utilisation de 4 taux de redondance EEP 2-A, EEP 3-A, EEP 3-B et EEP 4-A, utilisés en fonction de ce qu'on veut avoir comme qualité audio.
Ci-dessous les services sont classés par nombre de CU utilisés (donc en principe de la moins bonne qualité à la meilleure)
sachant qu'en France on a un débit de 88 Kbps et 66 CU par service. Là le maximum est de 48 CU pour le meilleurs service.

j'ai enregistré un fichier Raw d'une minute pour ceux qui veulent se rendre compte de ce que ça donne en 32 kbps, 24 ou 16 kbps (on peut le lire avec QIRX ou Qt-DAB)
9A_DAB Melbourne 1_2024-03-14_122738.raw

[Franck Morin]

pour le multiplex 9B F004 DAB Melbourne 2, on capte les radios suivantes.
les services sont extraits via DABplayer et listés par ordre de compression et de débit :

Protection level // Bitrate // Service ID // Service Name // Short Label // Service Language // PTY // Sub channel ID // CU
EEP 2-A // 48 // 10CA // 3AW 693 // 3AW 693 // English // Current Affairs // 1 // 48
EEP 2-A // 48 // 10CC // NTS // NTS // English // No programme type // 3 // 48
EEP 2-A // 96 // 10CB // Magic 1278 // Magic // English // Easy Listening Music // 2 // 96
EEP 3-A // 32 // 10DE // FOX 101.9 // FOX 1019 // none // none // F // 24
EEP 3-A // 32 // 10DF // Triple M // Triple M // none // none // 10 // 24
EEP 3-A // 32 // 10E0 // MMM105.1 TRIPLEM // MMM105.1 // none // none // 10 // 24
EEP 3-A // 32 // 10E1 // MMM 90s // MMM 90s // none // none // 11 // 24
EEP 3-A // 32 // 10E2 // OLDSKOOL 80 HITS // OLDSKL80 // none // none // 13 // 24
EEP 3-A // 32 // 10E3 // EASY HITS // EASYHITS // none // none // 12 // 24
EEP 3-A // 32 // 10E4 // RnB FRIDAYS // RnB FRI // none // none // 15 // 24
EEP 3-A // 32 // 10E5 // OLDSKOOL 90 HITS // OLDSKL90 // none // none // 14 // 24
EEP 3-A // 32 // 10E6 // DANCE HITS // DANCE // none // none // 16 // 24
EEP 3-A // 32 // 10E7 // Almost Acoustic // Acoustic // none // none // 17 // 24
EEP 3-A // 32 // 10E8 // BLENDER BEATS // BLENDER // none // none // 18 // 24
EEP 3-A // 32 // 10E9 // AUSSIE PUB ROCK // PUB ROCK // none // none // 19 // 24
EEP 3-A // 32 // 10F2 // Gold 1043 // Gold1043 // none // No programme type // 1D // 24
EEP 3-A // 32 // 10F3 // KIIS 1011 // KIIS // none // No programme type // 1E // 24
EEP 3-A // 32 // 10F4 // CADA // CADA // none // No programme type // 1F // 24
EEP 3-A // 32 // 10F5 // KIIS 90s // KIIS 90s // none // No programme type // 20 // 24
EEP 3-A // 32 // 10F6 // CWRemix // CWRemix // none // No programme type // 21 // 24
EEP 3-A // 32 // 10F7 // Gold 80s // Gold 80s // none // No programme type // 22 // 24
EEP 3-A // 32 // 10F8 // TikTok Trending // TikTok // none // No programme type // 23 // 24
EEP 3-A // 32 // 10F9 // iHeart Country // iHrtCtry // none // No programme type // 24 // 24
EEP 3-A // 32 // 10FA // iHeart Trivia // iHrtTriv // none // No programme type // 25 // 24
EEP 3-A // 40 // 1166 // JOY // JOY // none // Social Affairs // 38 // 30
EEP 3-A // 48 // 1164 // 3KND KoolnDeadly // 3KND // none // Culture // 36 // 36
EEP 3-B // 64 // 1160 // 3CR Digital // 3CR Dig // none // Social Affairs // 32 // 36
EEP 3-B // 64 // 1162 // PBS Digital // PBS Digi // none // Other Music // 34 // 36
EEP 3-B // 64 // 1163 // SYN // SYN // none // Social Affairs // 35 // 36
EEP 4-A // 32 // 1161 // VA Radio Melb // VA Radio // none // Information // 33 // 16

Code: Tout sélectionner

Ensemble 0xF004, Label: 'DAB Melbourne 2', ShortLabel: 'DAB Mel', LTO: +660 min, ECC: 0xF0, AlarmFlag: 1, NumServices: 30
    Audio-Service 0x10CA, Label: '3AW 693', ShortLabel: '3AW 693', PTY: Current Affairs (static), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 1, StartCU: 480, NumCU: 48, ErrorProt: EEP 2-A (FEC: 3/8), Datarate: 48 kbit/s, NumUserApps: 0
    Audio-Service 0x10CB, Label: 'Magic 1278', ShortLabel: 'Magic', PTY: Easy Listening Music (static), AnnouncementSupport: Yes, Flags: 0x03F0 [News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 2, StartCU: 528, NumCU: 96, ErrorProt: EEP 2-A (FEC: 3/8), Datarate: 96 kbit/s, NumUserApps: 0
    Audio-Service 0x10CC, Label: 'NTS', ShortLabel: 'NTS', PTY: No programme type (static), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 3, StartCU: 624, NumCU: 48, ErrorProt: EEP 2-A (FEC: 3/8), Datarate: 48 kbit/s, NumUserApps: 0
    Audio-Service 0x10DE, Label: 'FOX 101.9', ShortLabel: 'FOX 1019', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 15, StartCU: 0, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10DF, Label: 'Triple M', ShortLabel: 'Triple M', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 16, StartCU: 24, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E0, Label: 'MMM105.1 TRIPLEM', ShortLabel: 'MMM105.1', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 16, StartCU: 24, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E1, Label: 'MMM 90s', ShortLabel: 'MMM 90s', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 17, StartCU: 48, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E2, Label: 'OLDSKOOL 80 HITS', ShortLabel: 'OLDSKL80', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 19, StartCU: 96, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E3, Label: 'EASY HITS', ShortLabel: 'EASYHITS', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 18, StartCU: 72, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E4, Label: 'RnB FRIDAYS', ShortLabel: 'RnB FRI', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 21, StartCU: 144, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E5, Label: 'OLDSKOOL 90 HITS', ShortLabel: 'OLDSKL90', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 20, StartCU: 120, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E6, Label: 'DANCE HITS', ShortLabel: 'DANCE', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 22, StartCU: 168, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E7, Label: 'Almost Acoustic', ShortLabel: 'Acoustic', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 23, StartCU: 192, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E8, Label: 'BLENDER BEATS', ShortLabel: 'BLENDER', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 24, StartCU: 216, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10E9, Label: 'AUSSIE PUB ROCK', ShortLabel: 'PUB ROCK', PTY: -, AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 25, StartCU: 240, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 0
    Audio-Service 0x10F2, Label: 'Gold 1043', ShortLabel: 'Gold1043', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 29, StartCU: 264, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F3, Label: 'KIIS 1011', ShortLabel: 'KIIS', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 30, StartCU: 288, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F4, Label: 'CADA', ShortLabel: 'CADA', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 31, StartCU: 312, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F5, Label: 'KIIS 90s', ShortLabel: 'KIIS 90s', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 32, StartCU: 336, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F6, Label: 'CWRemix', ShortLabel: 'CWRemix', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 33, StartCU: 360, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F7, Label: 'Gold 80s', ShortLabel: 'Gold 80s', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 34, StartCU: 384, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F8, Label: 'TikTok Trending', ShortLabel: 'TikTok', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 35, StartCU: 408, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10F9, Label: 'iHeart Country', ShortLabel: 'iHrtCtry', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 36, StartCU: 432, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x10FA, Label: 'iHeart Trivia', ShortLabel: 'iHrtTriv', PTY: No programme type (dynamic), AnnouncementSupport: Yes, Flags: 0x07FE [Road Traffic flash, Transport flash, Warning/Service, News flash, Area weather flash, Event announcement, Special event, Programme Information, Sport report, Financial report], NumClusters: 1 [1], NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 37, StartCU: 456, NumCU: 24, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x1160, Label: '3CR Digital', ShortLabel: '3CR Dig', PTY: Social Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 50, StartCU: 672, NumCU: 36, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x1161, Label: 'VA Radio Melb', ShortLabel: 'VA Radio', PTY: Information (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 51, StartCU: 708, NumCU: 16, ErrorProt: EEP 4-A (FEC: 3/4), Datarate: 32 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x1162, Label: 'PBS Digital', ShortLabel: 'PBS Digi', PTY: Other Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 52, StartCU: 724, NumCU: 36, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x1163, Label: 'SYN', ShortLabel: 'SYN', PTY: Social Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 53, StartCU: 760, NumCU: 36, ErrorProt: EEP 3-B (FEC: 2/3), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x1164, Label: '3KND KoolnDeadly', ShortLabel: '3KND', PTY: Culture (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 54, StartCU: 796, NumCU: 36, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 48 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', UaType: 0x2 (Slideshow), DataLen: 0 []
    Audio-Service 0x1166, Label: 'JOY', ShortLabel: 'JOY', PTY: Social Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 56, StartCU: 832, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 0

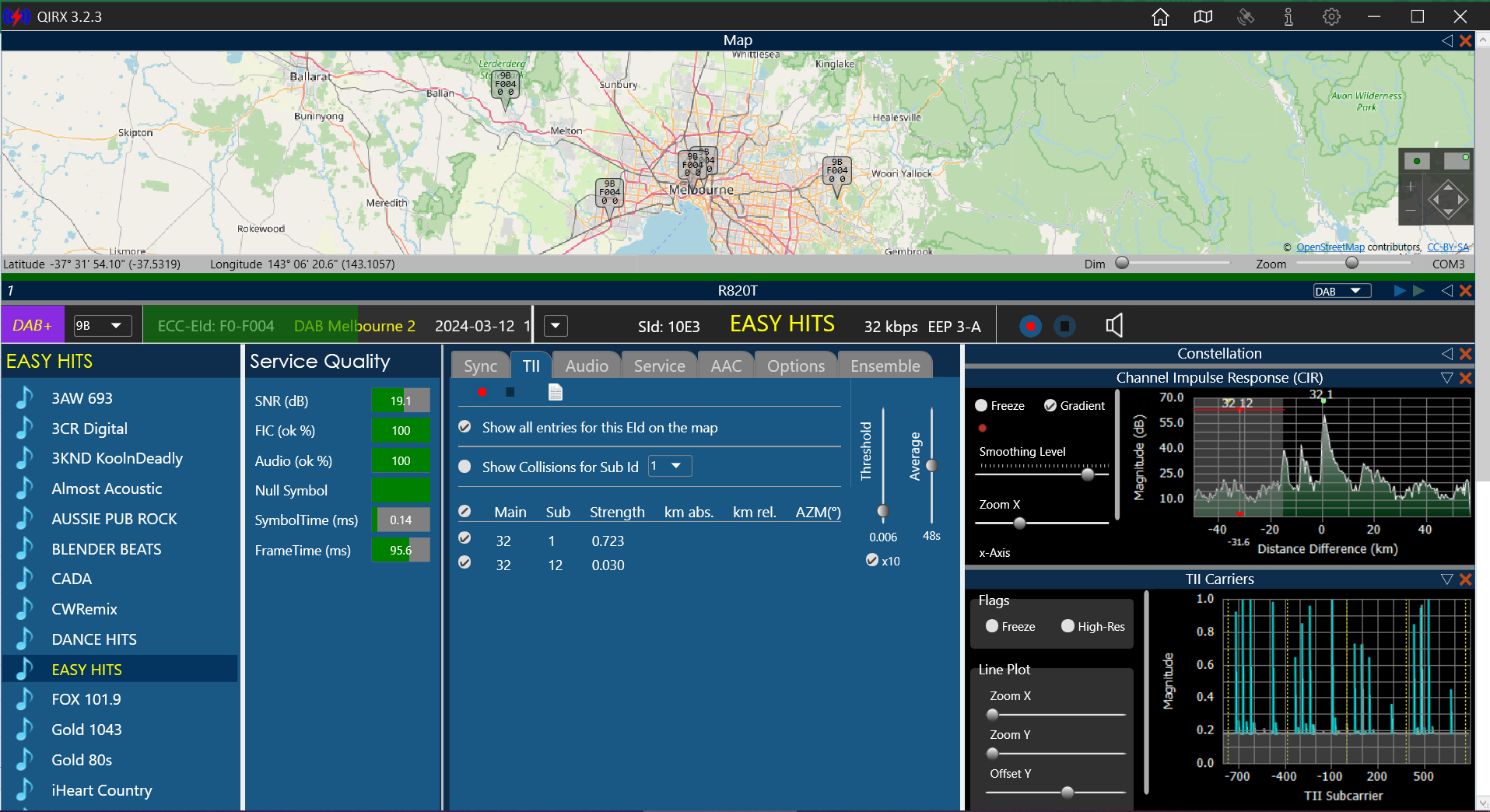

les radios et les émetteurs issues de fmlist/DABlist:
https://www.fmlist.org/sendertabelle/dab-ww_more.php?inputLand=AUS&inputEn=F004

les TII que je recevais, je n'ai pas réussi à déterminer quel émetteur avait le TII 32/1 et lequel le 32/12

pour information la répartition des CU par service:


j'ai enregistré un fichier fic et je l'ai fait analyser par le service en ligne, a priori il n'y a rien de particuler en tant que suivi de service (pas de FIG 0/6, 0/21 ou 0/24).
https://www.telder.com/fic/fic.php?ficfile=9B_DAB%20Melbourne%202_2024-03-12_144309.fic

les débits sont relativement faibles pour chacun des services, mais c'est compensé par l'utilisation de 4 taux de redondance EEP 2-A, EEP 3-A, EEP 3-B et EEP 4-A, utilisé en fonction de ce qu'on veut avoir comme qualité audio.

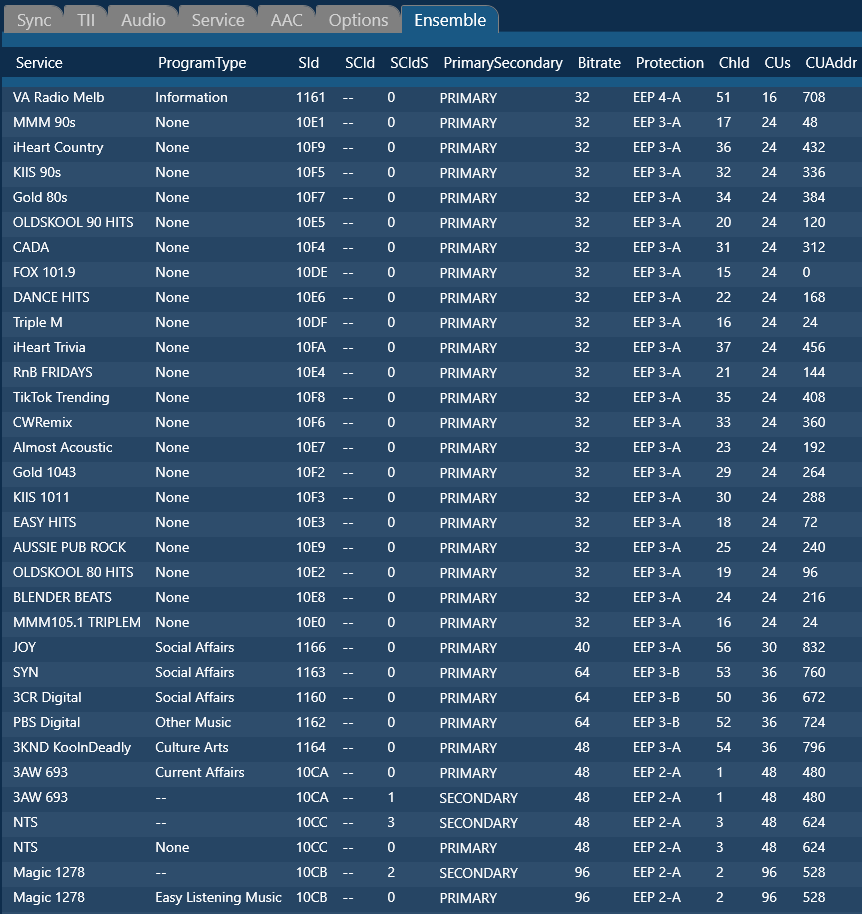

Ci-dessous les services sont classés par nombre de CU utilisés (donc en principe de la moins bonne qualité à la meilleure)
sachant qu'en France on a un débit de 88 Kbps et 66 CU pour tous les services. Là le maximum est de 96 CU pour le meilleurs service et 16 pour le moins bon a priori.

j'ai enregistré un fichier Raw d'une minute pour ceux qui veulent se rendre compte de ce que ça donne en 32 kbps ou 40 kbps (on peut le lire avec QIRX ou Qt-DAB)
9B_DAB Melbourne 2_2024-03-14_122321.raw

[Franck Morin]

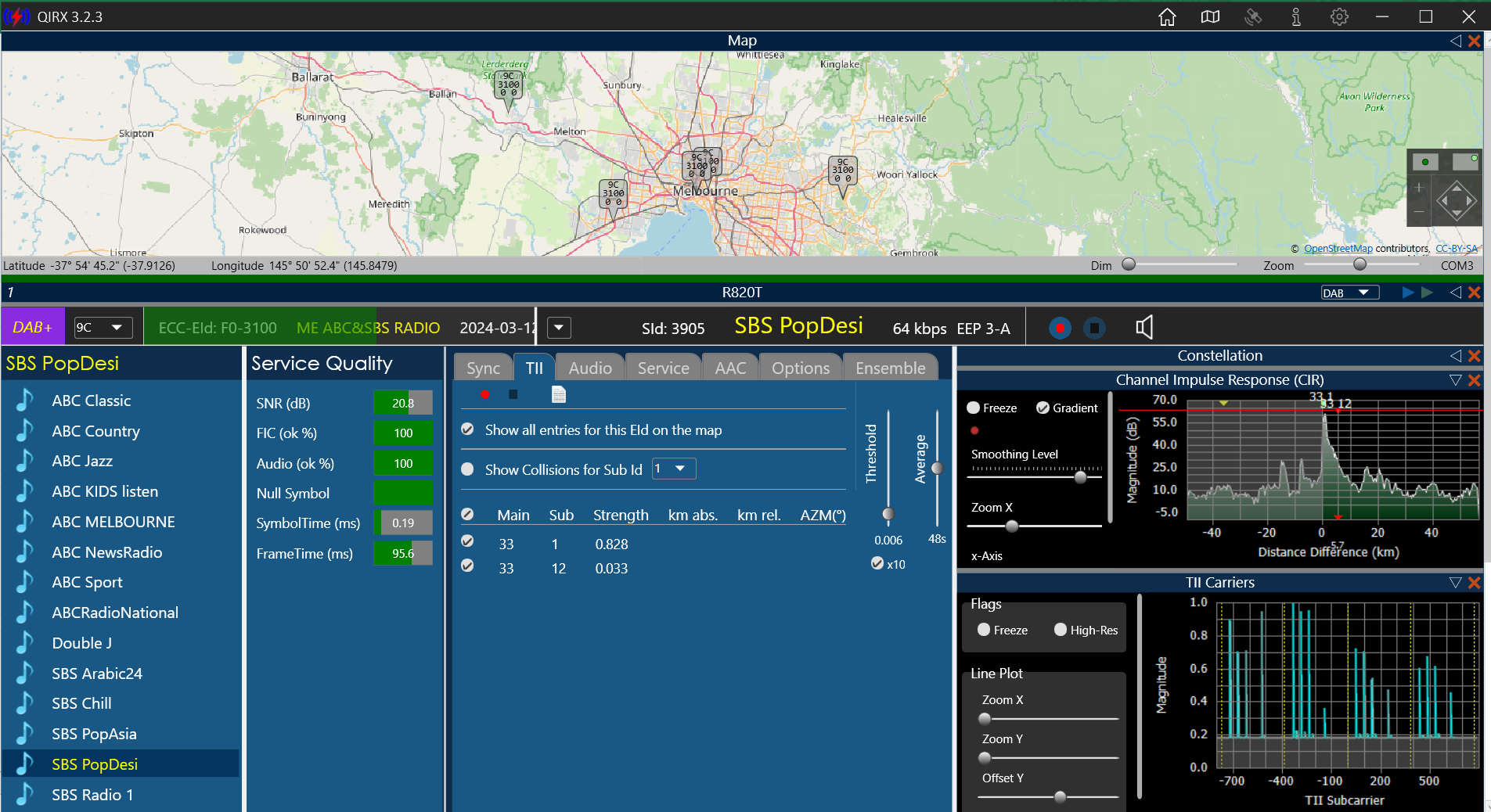

pour le multiplex 9C 3100 ME ABC&SBS RADIO, on capte les radios suivantes.
les services sont extraits via DABplayer et listés par ordre de compression et de débit :

Protection level // Bitrate // Service ID // Service Name // Short Label // PTY // Sub channel ID // CU
EEP 3-A // 40 // 3100 // ABC Sport // ABCSport // Sport // 1 // 30
EEP 3-A // 40 // 310C // ABC NewsRadio // ABC News // News // B // 30
EEP 3-A // 40 // 3900 // SBS Radio 1 // SBS 1 // Current Affairs // 20 // 30
EEP 3-A // 40 // 3901 // SBS Radio 2 // SBS 2 // Current Affairs // 21 // 30
EEP 3-A // 48 // 3904 // SBS Arabic24 // Arabic24 // News // 26 // 36
EEP 3-A // 48 // 3906 // SBS Radio 3 // SBS 3 // Current Affairs // 24 // 36
EEP 3-A // 64 // 3102 // ABC MELBOURNE // ABC MEL // Varied // 2 // 48
EEP 3-A // 64 // 3103 // ABCRadioNational // ABCRN // Varied // 3 // 48
EEP 3-A // 64 // 310A // ABC KIDS listen // ABC KIDS // Children's programmes // 9 // 48
EEP 3-A // 64 // 3905 // SBS PopDesi // PopDesi // National Music // 27 // 48
EEP 3-A // 72 // 3106 // triple j // triple j // Pop Music // 5 // 54
EEP 3-A // 72 // 3107 // triplejUnearthed // Unearth // Pop Music // 6 // 54
EEP 3-A // 72 // 3108 // Double J // Double J // Pop Music // 7 // 54
EEP 3-A // 72 // 310B // ABC Country // ABCCntry // Country Music // A // 54
EEP 3-A // 72 // 3902 // SBS Chill // SBSChill // National Music // 22 // 54
EEP 3-A // 72 // 3903 // SBS PopAsia // SBSPAsia // National Music // 23 // 54
EEP 3-A // 88 // 3109 // ABC Jazz // ABC Jazz // Jazz Music // 8 // 66
EEP 3-A // 120 // 3104 // ABC Classic // ABC Clas // Serious Classical // 4 // 90

Code: Tout sélectionner

Ensemble 0x3100, Label: 'ME ABC&SBS RADIO', ShortLabel: 'ABC&SBS', LTO: +660 min, ECC: 0xF0, AlarmFlag: 0, NumServices: 18
    Audio-Service 0x3100, Label: 'ABC Sport', ShortLabel: 'ABCSport', PTY: Sport (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 1, StartCU: 144, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3102, Label: 'ABC MELBOURNE', ShortLabel: 'ABC MEL', PTY: Varied (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 2, StartCU: 366, NumCU: 48, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3103, Label: 'ABCRadioNational', ShortLabel: 'ABCRN', PTY: Varied (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 3, StartCU: 318, NumCU: 48, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3104, Label: 'ABC Classic', ShortLabel: 'ABC Clas', PTY: Serious Classical (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 4, StartCU: 0, NumCU: 90, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 120 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3106, Label: 'triple j', ShortLabel: 'triple j', PTY: Pop Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 5, StartCU: 468, NumCU: 54, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 72 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3107, Label: 'triplejUnearthed', ShortLabel: 'Unearth', PTY: Pop Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 6, StartCU: 522, NumCU: 54, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 72 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3108, Label: 'Double J', ShortLabel: 'Double J', PTY: Pop Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 7, StartCU: 414, NumCU: 54, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 72 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3109, Label: 'ABC Jazz', ShortLabel: 'ABC Jazz', PTY: Jazz Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 8, StartCU: 174, NumCU: 66, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 88 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x310A, Label: 'ABC KIDS listen', ShortLabel: 'ABC KIDS', PTY: Children's programmes (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 9, StartCU: 240, NumCU: 48, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x310B, Label: 'ABC Country', ShortLabel: 'ABCCntry', PTY: Country Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 10, StartCU: 90, NumCU: 54, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 72 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x310C, Label: 'ABC NewsRadio', ShortLabel: 'ABC News', PTY: News (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 11, StartCU: 288, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3900, Label: 'SBS Radio 1', ShortLabel: 'SBS 1', PTY: Current Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 32, StartCU: 576, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3901, Label: 'SBS Radio 2', ShortLabel: 'SBS 2', PTY: Current Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 33, StartCU: 606, NumCU: 30, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 40 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3902, Label: 'SBS Chill', ShortLabel: 'SBSChill', PTY: National Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 34, StartCU: 672, NumCU: 54, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 72 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3903, Label: 'SBS PopAsia', ShortLabel: 'SBSPAsia', PTY: National Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 35, StartCU: 726, NumCU: 54, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 72 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3904, Label: 'SBS Arabic24', ShortLabel: 'Arabic24', PTY: News (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 38, StartCU: 780, NumCU: 36, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 48 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3905, Label: 'SBS PopDesi', ShortLabel: 'PopDesi', PTY: National Music (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 39, StartCU: 816, NumCU: 48, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 64 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]
    Audio-Service 0x3906, Label: 'SBS Radio 3', ShortLabel: 'SBS 3', PTY: Current Affairs (dynamic), AnnouncementSupport: No, NumComponents: 1 (Audio: 1, Data: 0)
        AudioComponent, SCIdS: 0, Label: '', ShortLabel: '', ASCTy: 0x3F (AAC), SubChId: 36, StartCU: 636, NumCU: 36, ErrorProt: EEP 3-A (FEC: 1/2), Datarate: 48 kbit/s, NumUserApps: 1
            User App 1 / 1, Label: '', ShortLabel: '', DSCTy: 0x3C (MOT), X-PAD type: 12, UaType: 0x2 (Slideshow), DataLen: 2 [0C3C]

les radios et les émetteurs issues de fmlist/DABlist:
https://www.fmlist.org/sendertabelle/dab-ww_more.php?inputLand=AUS&inputEn=3100

les TII que je recevais, je n'ai pas réussi à déterminer quel émetteur avait le TII 33/1 et lequel le 33/12

pour information la répartition des CU par service:


j'ai enregistré un fichier fic et je l'ai fait analyser par le service en ligne, a priori il n'y a rien de particuler en tant que suivi de service (pas de FIG 0/6, 0/21 ou 0/24).
https://www.telder.com/fic/fic.php?ficfile=9C_ME%20ABCandSBS%20RADIO_2024-03-12_144631.fic

les débits sont relativement faibles pour chacun des services sauf pour ABC Classic qui a un débit de 120 kbps sur 90 CU (en France on a 88 kbps sur 66 CU).
ABC Jazz a le même débit et taux de redondance que ce qu'on a sur toutes nos radios en France.
Ci-dessous les services sont classés par nombre de CU utilisés (donc en principe de la moins bonne qualité à la meilleure)


j'ai enregistré un fichier Raw d'une minute pour ceux qui veulent se rendre compte de ce que ça donne en fonction des débits (on peut le lire avec QIRX ou Qt-DAB)
9C_ME ABC&SBS RADIO_2024-03-12_144821.raw (faire enregistrer le lien sous)

[Franck Morin]

les slideshows relevés sur les 3 multiplex de Melbourne entre les 12 et 15 mars 2024

multiplex 9A (EID F003)
















multiplex 9B (EID F004)






















multiplex 9C (EID 3100)

[Franck Morin]

Bonjour,

un petit up pour ce fil que j'ai terminé d'alimenter.
A noter que les multiplex 9A et 9B décrits ci-dessus sont très intéressants de par la diversité des débits utilisés pour chaque radio, le taux de redondance utilisé (correction d'erreur) et donc le nombre de CU par radio dans le multiplex.
On va de l'EEP-2A (très robuste, mais moins bonne qualité audio pour un débit donné et nombre de CU donné) à l'EEP-4A (susceptible d'être perturbé plus facilement si la réception est moins bonne, mais donne une meilleure qualité audio pour un nombre de CU donné), en passant par le 3A et le 3B.
A rapprocher des explications qui avaient été fournies à ce propos dans le fil La technique et la technologie de la RNT (DAB+).

j'ai mis des acquisitions des données du flux sur 1 minute (fichier raw, contenant l'audio et FIC), pour ceux qui veulent se rendre compte des différentes qualités audio de ce qui est diffusé aux différents débits et différents paramètres de correction d'erreur.
malgré les débits relativement faibles et le nombre énorme de radios pour ces 2 multiplex 9A et 9B (30 radios comparé aux 13 de la France), je ne trouve pas la qualité audio si ridicule.
A noter que là-bas la radio classique nationale ABC Classic a un débit très supérieur aux autres radios, 120 kb/s à rapprocher des 88 kb/s de la France, mais sur 90 CU au lieu des 66 CU en France (multiplex 9C).
ABC Jazz a les mêmes caractéristiques de qualité que ce qu'on trouve en France sur tous nos multiplex.

Enfin pour finir je ne les ai pas listées mais un certain nombre de radios à bas débit sont en mono, ce qui permet de multiplier artificiellement le débit par 2 pour une perception d'écoute équivalente sur un poste radio à 1 seul haut parleur !
On les retrouve partiellement sur les 3 liens fmlist:
https://www.fmlist.org/sendertabelle/dab-ww_more.php?inputLand=AUS&inputEn=F003
https://www.fmlist.org/sendertabelle/dab-ww_more.php?inputLand=AUS&inputEn=F004
https://www.fmlist.org/sendertabelle/dab-ww_more.php?inputLand=AUS&inputEn=3100

[Sid 34]

Merci pour cette série de posts sur le DAB+ australien Franck, c'est très intéressant.

[JMJ3]

Bonjour
Très très intéressant > Merci.

[savoisien]

Par contre aux Etats-Unis et au Canada, la norme de radio numérique est différente, puisque eux utilisent la HD radio en optimisant la bande FM, différente du DAB +
